3.5 UWP开发网格布局控件(Grid)

学习要点

网格控件（Grid）

网格控件可以定义你的子控件放在哪一行（Row），哪一列（Column），能后很方便的对app的布局进行布局，这是一个比较重要的控件，会经常用到。

看几个例子

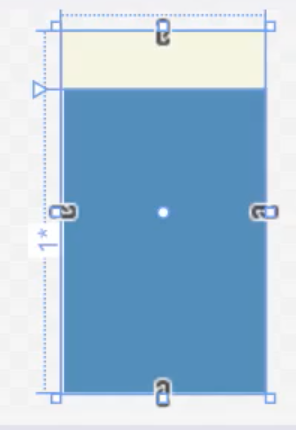

1.

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="*" />
        </Grid.RowDefinitions>

        <Rectangle Height="100" Fill="Beige" Grid.Row="0" />
        <Rectangle Grid.Row="1" Fill="SteelBlue" />
    </Grid>

Auto 高度与控件的高度相关联
* 占据剩余空间的高度

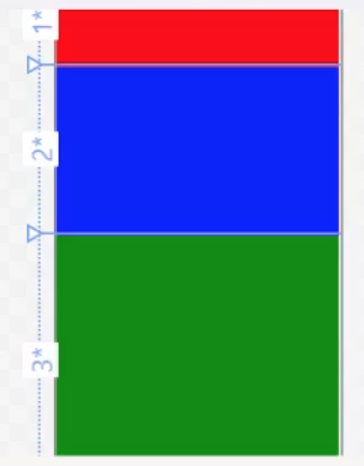

2.

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid.RowDefinitions>
            <RowDefinition Height="1*" />
            <RowDefinition Height="2*" />
            <RowDefinition Height="3*" />
        </Grid.RowDefinitions>

        <Rectangle Fill="Red" Grid.Row="0" />
        <Rectangle Fill="Blue" Grid.Row="1" />
        <Rectangle Fill="Green" Grid.Row="2" />
    </Grid>

1，2，3*，分别代表1倍高，2倍高，3倍高。按1：2：3划分整个高度

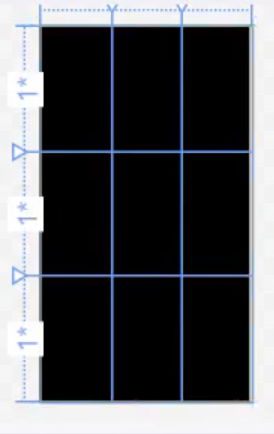

3.

    <Grid Background="Black">
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
            <RowDefinition Height="*" />
            <RowDefinition Height="*" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="*" />
        </Grid.ColumnDefinitions>

        <TextBlock>1</TextBlock>
        <TextBlock Grid.Column="1">2</TextBlock>
        <TextBlock Grid.Column="2">3</TextBlock>

        <TextBlock Grid.Row="1">4</TextBlock>
        <TextBlock Grid.Row="1" Grid.Column="1">5</TextBlock>
        <TextBlock Grid.Row="1" Grid.Column="2">6</TextBlock>

        <TextBlock Grid.Row="2">7</TextBlock>
        <TextBlock Grid.Row="2" Grid.Column="1">8</TextBlock>
        <TextBlock Grid.Row="2" Grid.Column="2">9</TextBlock>

    </Grid>

Column 列
Row 行
Grid.Row=”2” Grid.Column=”1” 表示第二行第一列

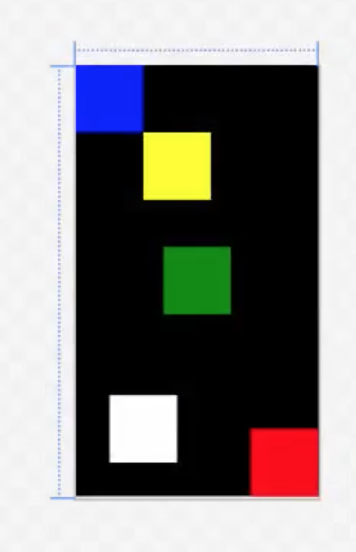

4.对齐

     <Grid Background="Black">
        <Rectangle Fill="Blue"
                   Height="100"
                   Width="100"
                   HorizontalAlignment="Left"
                   VerticalAlignment="Top" />

        <Rectangle Fill="Red"
                   Height="100"
                   Width="100"
                   HorizontalAlignment="Right"
                   VerticalAlignment="Bottom" />

        <Rectangle Fill="Green"
                   Height="100"
                   Width="100"
                   HorizontalAlignment="Center"
                   VerticalAlignment="Center" />

        <Rectangle Fill="Yellow"
                   Height="100"
                   Width="100"
                   HorizontalAlignment="Left"
                   VerticalAlignment="Top"
                   Margin="100,100"/>

        <Rectangle Fill="White"
                   Height="100"
                   Width="100"
                   HorizontalAlignment="Left"
                   VerticalAlignment="Bottom"
                   Margin="50,0,0,50"/>

    </Grid>

HorizontalAlignment 水平对齐 Left Center Right
VerticalAlignment 垂直对齐 Top Center Right
Margin = “左，上，右，下”
